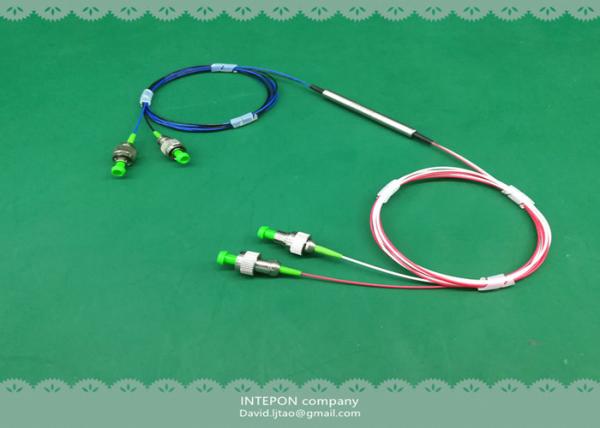

Fiber optic circulator, made in China, 1610nm, 4 ports, 5.5x60mm.
The 1625nm fiber circulator made in China has 4 ports which can pass the light from port1 to port2, port2 to port3, port3 to port 4. Importantly, the signal cannot be passed from port4 to port1.
The fiber circulator can be used to protect the signal source with high isolation.
From this point, you can treat it as an isolator but it doesn't equal to the isolator. Taking the number of the ports as an example, the isolator has one input and one output but the 4ports circulator has 3 input and 3 output. For this reason, the port 2 and the port 3 of circulators is the input and output, it means that you can input your signal from port 2&port 3 and you can also transmit the optical signal from port 2 & port3.
Firstly, the signal inserts from port 1 and output port 3.
Secondly, the other signal will input port 2 and output port 3
Lastly, the signal input port3 and output port4.
That's the reason that we call 4 ports circulator.
Features
Structure : 4 ports
Insertion loss : ≤ 1.4dB
High return loss: return loss ≥50dB
High isolation: isolation ≥40dB
Compact size: 5.5x60mm package size
Connector type: no connector
Applications
Protecting the light source
Optical amplifier
Optical transmission system
Data center
| Specifications | ||
| Parameters | Unit | Specification |
| Operating wavelength Range | nm | 1625 |
| Insertion loss (1-2, 2-3 @ 23 C ) | dB | ≤1.4 |
| Polarization Dependent Loss (PDL) | dB | ≤0.20 |
| Polarization Mode Dispersion (PMD) | dB | ≤0.1 |
| Isolation (2-1, 3-2 @ 23 C) | dB | ≥40 |
| Directivity | dB | ≥50 |
| Return Loss | dB | ≥50 |
| Power handling(mW) | mW | ≤500 |
| Pigtail length | m | 1m or special |
| Port color | - | Each port color Can be customized |
| Tensile Load | N | ≤5 |
| Operating Temperature | C | -5 to +70 |
| Storage Temperature | C | -40 to +85 |
| Remark | ||
| * Above specifications are tested without connector at room
temperature | ||
