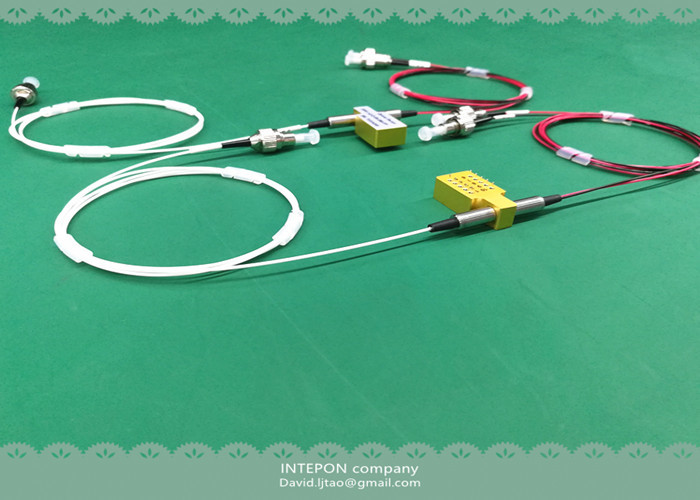

Optical switch, 1x2, Transmission type, 1310/1550, latching type, FC/PC connector.
The optical switch is used for protecting light path and it can choose the optic light path. It's an ideal Component for OADM, OXC, system monitoring and error protection. It could be easy to integrate into a high-density optical communication system.
Features
Structure: 3 ports
Insertion loss : ≤ 0.8dB
Control type: latching type
High return loss: return loss ≥50dB
Applications
Protecting the light source
OADM
Optical transmission system
Component Testing
| Specifications | ||
| Parameters | Unit | Specification |
| Operating wavelength Range | nm | 1310/1550 |
| Insertion loss (1-2, 2-3 @ 23 C ) | dB | ≤0.8 |
| Polarization Dependent Loss (PDL) | dB | ≤0.05 |
| Wavelength dependent loss | dB | ≤0.25 |
| Control type | dB | latching |
| Pigtail type | / | 0.9mm loose tube |
| Return Loss | dB | ≥50 |
| Power handling(mW) | mW | ≤500 |
| Pigtail length | m | 1m or other lengths |
| Port color | - | 1m or other lengths |
| Tensile Load | N | ≤5 |
| Operating Temperature | C | -5 to +70 |
| Storage Temperature | C | -40 to +85 |
| Remark | ||
| * Above specifications are tested without connector at room
temperature With connector, 0.3dB higher for IL & 5dB lower for RL per connector. | ||
Q&A:
Q: What's your Payment terms?
A: We accept TT & Western Union for payment.
Q: How to order a sample?
A: You can contact us directly and tell us your requirements on any of our products.
Q: Could you print our company logo or design on the products?
A: Yes, we can accept your need but we will share the charge with you.
Q: If we decide to move forward with our order what is the next step?
A: You place an order first. Then we will send you PI. After you settle the payment by TT or the Western Union. We will arrange production for you.
Q: What is your normal production lead time for a first order and then for repeat orders?
A: It depends on the product you need. For example, if you purchased a 1550nm fiber circulator for your first order, and then you look for it again, but we will check the material of it and tell you the delivery time.
Q: Do you have warranty policy?
A: Yes, we have. We provide 12 months maintenance warranty.
|
|
