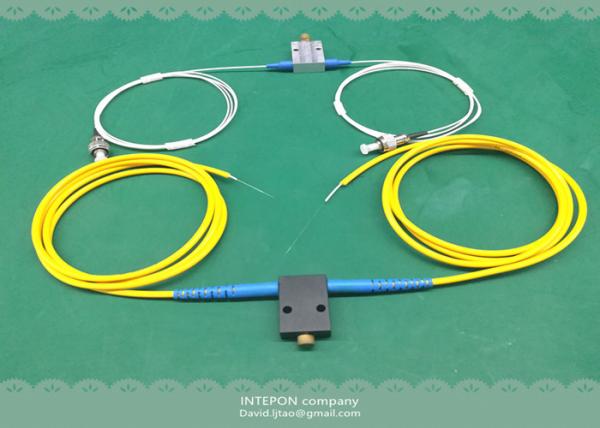

Fiber attenuator, in-line type, 1550nm, 0~60dB attenuation, 3mm loose tube.
The attenuator is based on collimator with the screw by hand which can attenuate the light in the optical path. It's widely used for protecting the network system.
Features
Structure: 1x1 port
Insertion loss : ≤ 0.6dB
Max attenuation: 60dB
High return loss: return loss ≥50dB
Applications
Protecting the light source
Optical amplifier
Optical transmission system
Data center
| Specifications | ||
| Parameters | Unit | Specification |
| Operating wavelength Range | nm | 1550 |
| Insertion loss (23 C ) | dB | ≤0.6 |
| Polarization Dependent Loss (PDL) | dB | ≤0.10 |
| Polarization Mode Dispersion (PMD) | dB | ≤0.1 |
| Max attenuation | dB | 60 |
| Pigtail type | / | 3.0mm loose tube |
| Return Loss | dB | ≥50 |
| Power handling(mW) | mW | ≤500 |
| Pigtail length | m | 1m or other lengths |
| Port color | - | 1m or other lengths |
| Tensile Load | N | ≤5 |
| Operating Temperature | C | -5 to +70 |
| Storage Temperature | C | -40 to +85 |
| Remark | ||
| * Above specifications are tested without connector at room
temperature With connector, 0.3dB higher for IL & 5dB lower for RL per connector. | ||
Q&A:
Q: What's your Payment terms?
A: We accept TT & Western Union for payment.
Q: How to order a sample?
A: You can contact us directly and tell us your requirements on any of our products.
Q: Could you print our company logo or design on the products?
A: Yes, we can accept your need but we will share the charge with you.
Q: If we decide to move forward with our order what is the next step?
A: You place an order first. Then we will send you PI. After you settle the payment by TT or the Western Union. We will arrange production for you.
Q: What is your normal production lead time for a first order and then for repeat orders?
A: It depends on the product you need. For example, if you purchased a 1550nm fiber circulator for your first order, and then you look for it again, but we will check the material of it and tell you the delivery time.
Q: Do you have warranty policy?
A: Yes, we have. We provide 12 months maintenance warranty.
|
|
