| Brand Name : | INTEPON |
| Model Number : | In-line Faraday Rotator |
| Certification : | RoHs, ISO9001:2015 |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 300~500pcs per month |

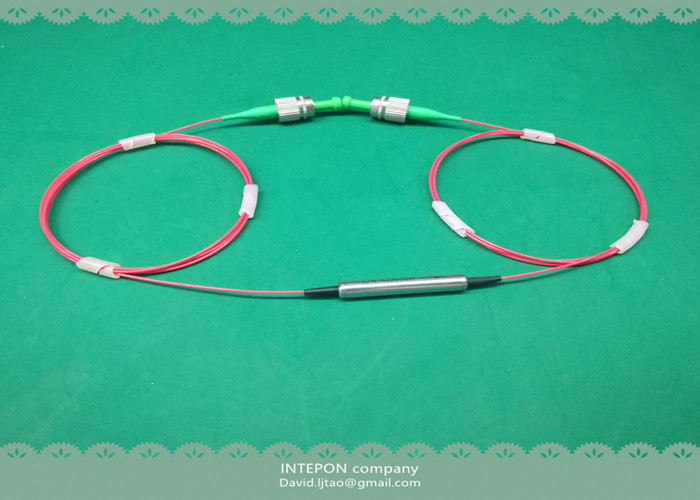

. 1064nm In-line Faraday Rotator, PM 980 fiber, 18dB extinction ratio, 45° rotation angle.
The In-line Faraday Rotator is produced to rotate the polarization of the input light by 45° or 90°. It's an important device for the fiber sensors.
Features
Extinction ratio: ≥18dB
Insertion loss: ≤1.8dB
Compact size: 5.5x35mm package size
Connector type: FC/APC
Applications
PM fiber amplifier
Fiber sensors
| Specifications | ||
| Parameters | Unit | Specification |
| Operating wavelength Range | nm | 1064 |
| Insertion loss (1-2, 2-3 @ 23 C ) | dB | ≤1.8 |
| Extinction Ratio | dB | ≥18dB |
| Rotation angle | / | 45°±1 |
| Fiber type | dB | Fujikura PM 980 |
| Directivity | dB | ≥50 |
| Return Loss | dB | ≥45 |
| Power handling(mW) | mW | ≤500 |
| Pigtail length | m | 0.8m or other |
| Port color | - | Red or customer provide |
| Tensile Load | N | ≤5 |
| Operating Temperature | C | -5 to +70 |
| Storage Temperature | C | -40 to +85 |
| Remark | ||
* Above specifications are tested with connector at room temperature
| ||
Q&A:
Q: What's your Payment terms?
A: We accept TT & Western Union for payment.
Q: How to order a sample?
A: You can contact us directly and tell us your requirements on any of our products.
Q: Could you print our company logo or design on the products?
A: Yes, we can accept your need but we will share the charge with you.
Q: If we decide to move forward with our order what is the next step?
A: You place an order first. Then we will send you PI. After you settle the payment by TT or the Western Union. We will arrange production for you.
Q: What is your normal production lead time for a first order and then for repeat orders?
A: It depends on the product you need. For example, if you purchased a 1550nm fiber circulator for your first order, and then you look for it again, but we will check the material of it and tell you the delivery time.
Q: Do you have warranty policy?
A: Yes, we have. We provide 12 months maintenance warranty.
|
