| Brand Name : | INTEPON |
| Model Number : | PM isolator |
| Certification : | RoHs, ISO9001:2015 |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 300~500pcs per month |

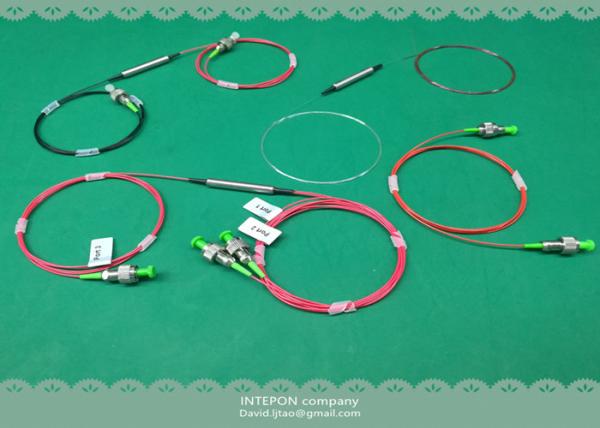

PM isolator, 1310nm, dual stage, 900um loose tube, FC/ACP connector, 0.8m fiber length.
The isolator is an important fiber device in the telecommunication system. It can protect the light source with Faraday rotator.
Features
Stage : dual stage
Fiber type: 900um loose tube
Connector type: FC/APC connector
Fiber length: 0.8m
Applications
Fiber laser
Optical Transmitters & Transceivers
Fiber Amplifiers & Fiber Sensors
| Specifications | ||
| Parameters | Unit | Specification |
| Operating wavelength Range | nm | 1310 |
| Insertion loss (1-2, 2-3 @ 23 C ) | dB | ≤0.7 |
| Extinction Ratio | dB | ≥20 |
| Polarization Mode Dispersion (PMD) | dB | ≤0.1 |
| Isolation (2-1, 3-2 @ 23 C) | dB | ≥48 |
| Directivity | dB | ≥50 |
| Return Loss | dB | ≥50 |
| Power handling(mW) | mW | ≤500 |
| Pigtail length | m | 0.8m |
| Port color | - | 0.8m |
| Tensile Load | N | ≤5 |
| Operating Temperature | C | -5 to +70 |
| Storage Temperature | C | -40 to +85 |
| Remark | ||
* Above specifications are tested without connector at room
temperature
| ||
Q&A:
Q: What's your Payment terms?
A: We accept TT & Western Union for payment.
Q: How to order a sample?
A: You can contact us directly and tell us your requirements on any of our products.
Q: Could you print our company logo or design on the products?
A: Yes, we can accept your need but we will share the charge with you.
Q: If we decide to move forward with our order what is the next step?
A: You place an order first. Then we will send you PI. After you settle the payment by TT or the Western Union. We will arrange production for you.
Q: What is your normal production lead time for a first order and then for repeat orders?
A: It depends on the product you need. For example, if you purchased a 1550nm fiber circulator for your first order, and then you look for it again, but we will check the material of it and tell you the delivery time.
Q: Do you have warranty policy?
A: Yes, we have. We provide 12 months maintenance warranty.
|
