Faraday mirror, 1310nm, 1x0 type, for EDFA, Granopt's faraday rotator, white loose tube.
The Faraday mirror is produced as an important part of the EDFA instrument. It can rotate the light signal by 45° or 90° and it has only one port. The input is the output but the light signal is different.
Features:
Wavelength: 1310nm
Type: 1x0 port
Faraday rotator: imported from GRONOPT
Applications:
Sensor system
EDFA
Fiber laser
| Parameters | Unit | Specifications |
| Center Wavelength (λc) | nm | 1310&1550 etc. |
| Working wavelength range | nm | ±40 |
| Faraday rotation angle | degree | 45±1, 90±2 |
| Insertion Loss (Refleciton rate) | dB | ≤0.6 |
| Polarization Dependent Loss (PDL) | dB | ≤0.1 |
| Polarization Mode Dispersion (PMD) | ps | ≤0.1 |
| Directivity | dB | ≥50 |
| Return Loss | dB | ≥50 |
| Power handling(CW) | mW | ≤500 |
| Tensile Load | N | ≤5 |
| Fiber type | - | SMF-28e |
| Package size | mm | φ4.5*25 |
| Operating Temperature | ℃ | -5 to +70 |
| Storage Temperature | ℃ | -40 to +85 |
| Remark | ||
| * Above specifications are for device without connector. | ||

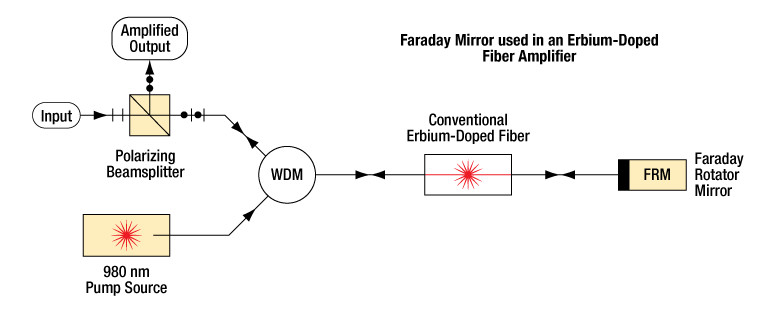

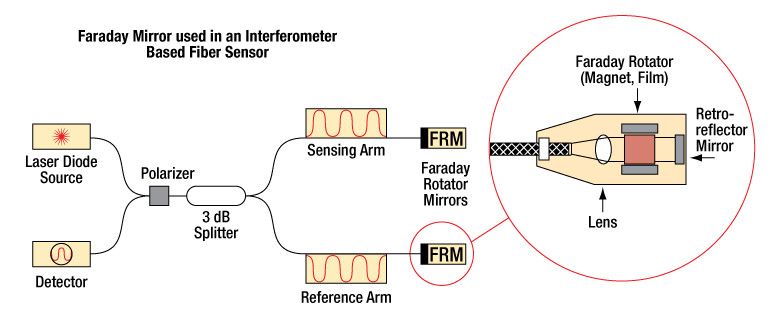

Application situation:
Q&A:
Q: What's your Payment terms?
A: We accept TT & Western Union for payment.
Q: How to order a sample?
A: You can contact us directly and tell us your requirements on any of our products.
Q: Could you print our company logo or design on the products?
A: Yes, we can accept your need but we will share the charge with you.
Q: If we decide to move forward with our order what is the next step?
A: You place an order first. Then we will send you PI. After you settle the payment by TT or the Western Union. We will arrange production for you.
Q: What is your normal production lead time for a first order and then for repeat orders?
A: It depends on the product you need. For example, if you purchased a 1550nm fiber circulator for your first order, and then you look for it again, but we will check the material of it and tell you the delivery time.
Q: Do you have warranty policy?
A: Yes, we have. We provide 12 months maintenance warranty.
|
|
