| Brand Name : | INTEPON |
| Model Number : | 3 ports mini optical fiber circulator |
| Certification : | RoHs, ISO9001:2015 |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 500~1000pcs per month |

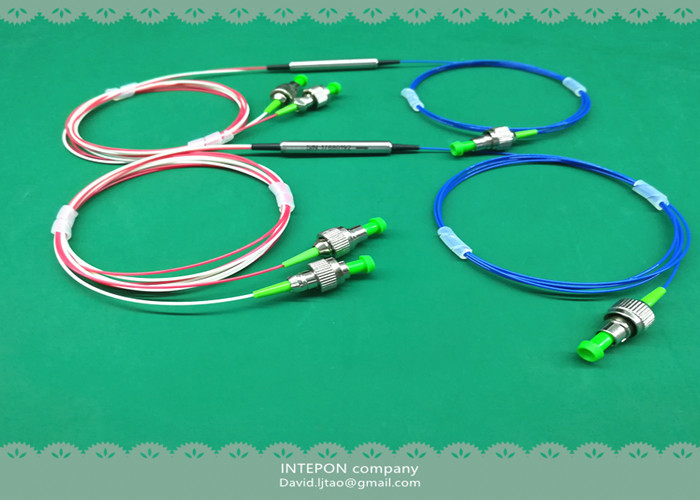

Fiber optic circulator, 1310nm, 3 ports, 5.5x38mm, using for data room, FC/APC connector.
The mini 1310nm fiber circulator can be used to save the space of data room.
You can treat it as an isolator but it doesn't equal to the 1310nm isolator. Taking the number of the ports as an example, the isolator has one input and one output but the 3ports circulator has 2 input and 2 output. For this reason, the port 2 of the 3 ports circulator is the input and output, it means that you can input your signal from port 2 and you can also transmit the optical signal from port 2. When we talk the light path of the circulator, it like this, check the below info for more details about the working path.
Firstly, the signal inserts from port 1 and output port 3.
Secondly, the other signal will input port 2 and output port 3
We need to pay more attention to the port 3 because it can not be treated as an entry.
Features
Type : 3 ports
Mini size: 5.5x38mm
Insertion loss: ≤1.0dB
High return loss: return loss ≥50dB
High isolation: isolation ≥50dB
Temperature stability: -40°~80°
Connector type: FC/APC
Applications
Protecting the light source
Optical amplifier
Optical transmission system
Data room
| Specifications | ||
| Parameters | Unit | Specification |
| Operating wavelength Range | nm | 1310 |
| Insertion loss (1-2, 2-3 @ 23 C ) | dB | ≤1.0 |
| Polarization Dependent Loss (PDL) | dB | ≤0.10 |
| Polarization Mode Dispersion (PMD) | dB | ≤0.1 |
| Isolation (2-1, 3-2 @ 23 C) | dB | ≥50 |
| Directivity | dB | ≥50 |
| Return Loss | dB | ≥50 |
| Power handling(mW) | mW | ≤500 |
| Pigtail length | m | 0.5m, 1m,1.5m etc |
| Port color | - | 0.5m, 1m, 1.5m etc |
| Tensile Load | N | ≤5 |
| Operating Temperature | C | -40 to +70 |
| Storage Temperature | C | -40 to +85 |
| Remark | ||
| * Above specifications are tested without connector at room
temperature With connector, 0.3dB higher for IL & 5dB lower for RL per connector. | ||
Application situation:
Q&A:
Q: What's your Payment terms?
A: We accept TT & Western Union for payment.
Q: How to order a sample?
A: You can contact us directly and tell us your requirements on any of our products.
Q: Could you print our company logo or design on the products?
A: Yes, we can accept your need but we will share the charge with you.
Q: If we decide to move forward with our order what is the next step?
A: You place an order first. Then we will send you PI. After you settle the payment by TT or the Western Union. We will arrange production for you.
Q: What is your normal production lead time for a first order and then for repeat orders?
A: It depends on the product you need. For example, if you purchased a 1550nm fiber circulator for your first order, and then you look for it again, but we will check the material of it and tell you the delivery time.
Q: Do you have warranty policy?
A: Yes, we have. We provide 12 months maintenance warranty.
|
|
